CODECASA 43 – HULL F68 – M.Y. THEOLINA


(ex Ferdy)

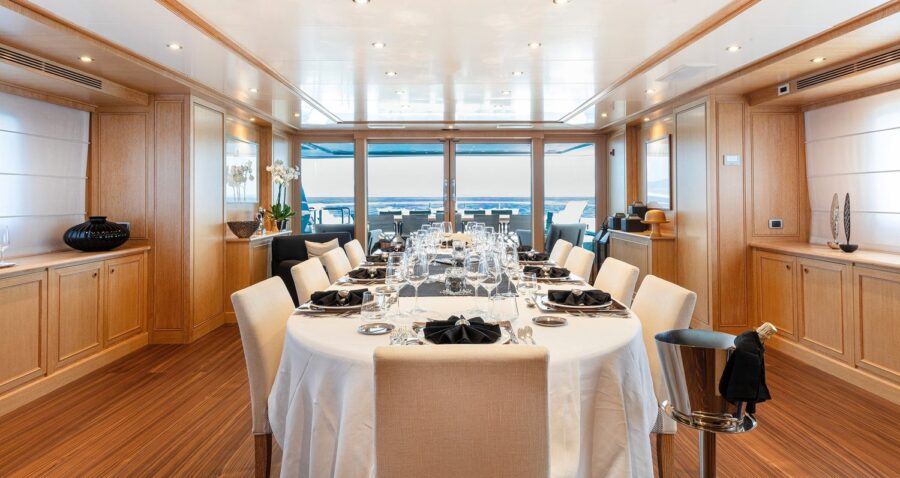

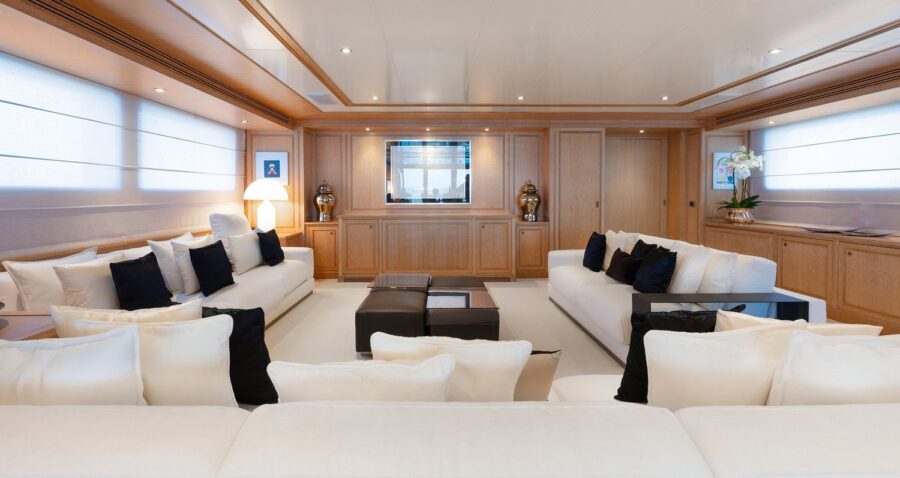

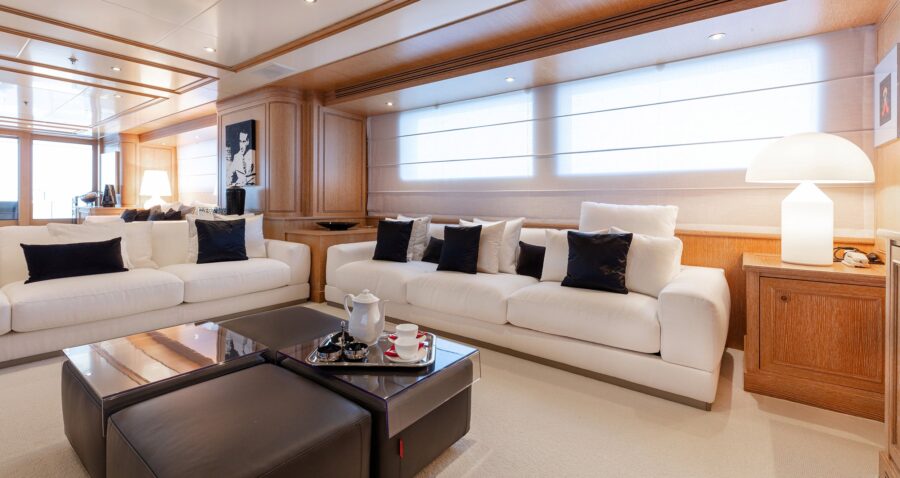

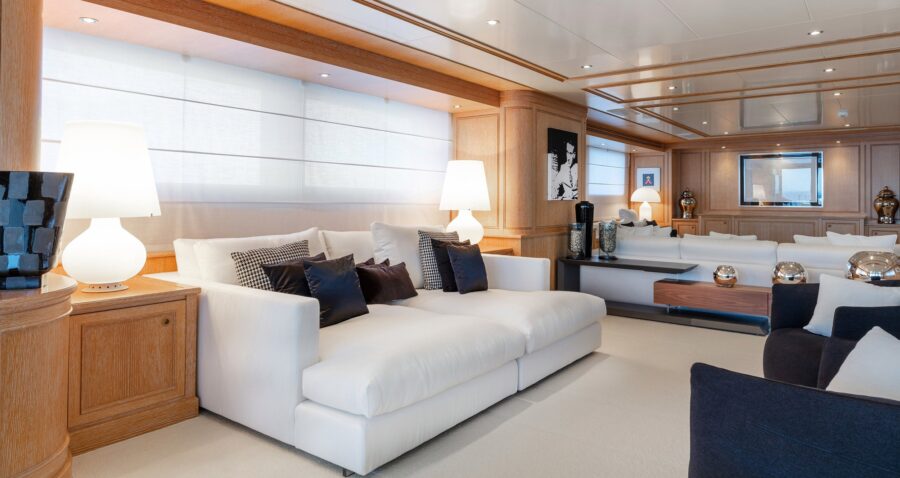

With her 43 metres length overall, this boat fully reflects Codecasa standards in the excellent quality of her materials and workmanship. With her high-tensile steel hull and aluminium alloy superstructure, Ferdy offers comfort, refinement and space both outside and inside, while retaining the performance characteristics of a displacement motor yacht of about 490 tonnes. Powered by 2 Caterpillar 3512B engines with propeller propulsion, the boat can reach a maximum speed of 17 knots at light displacement and offers a range of 3,000 miles at a cruising speed of 13 knots. “Ferdy” can accommodate up to 13 guests and 8 crew members. The interiors, by Architects Della Role, who have worked with Codecasa for many years, follow a very classic line. The panelling is in bleached oak, the ceilings are white lacquered and the floors, except in the bathrooms, are all covered in light carpet. Marble for the floors of the owner’s and guest bathrooms; wood for those of the day heads and two of the guest cabins. The overall tone of the interiors, also maintained outside, is simple, linear and clean, a tone expressly requested by the Owners.

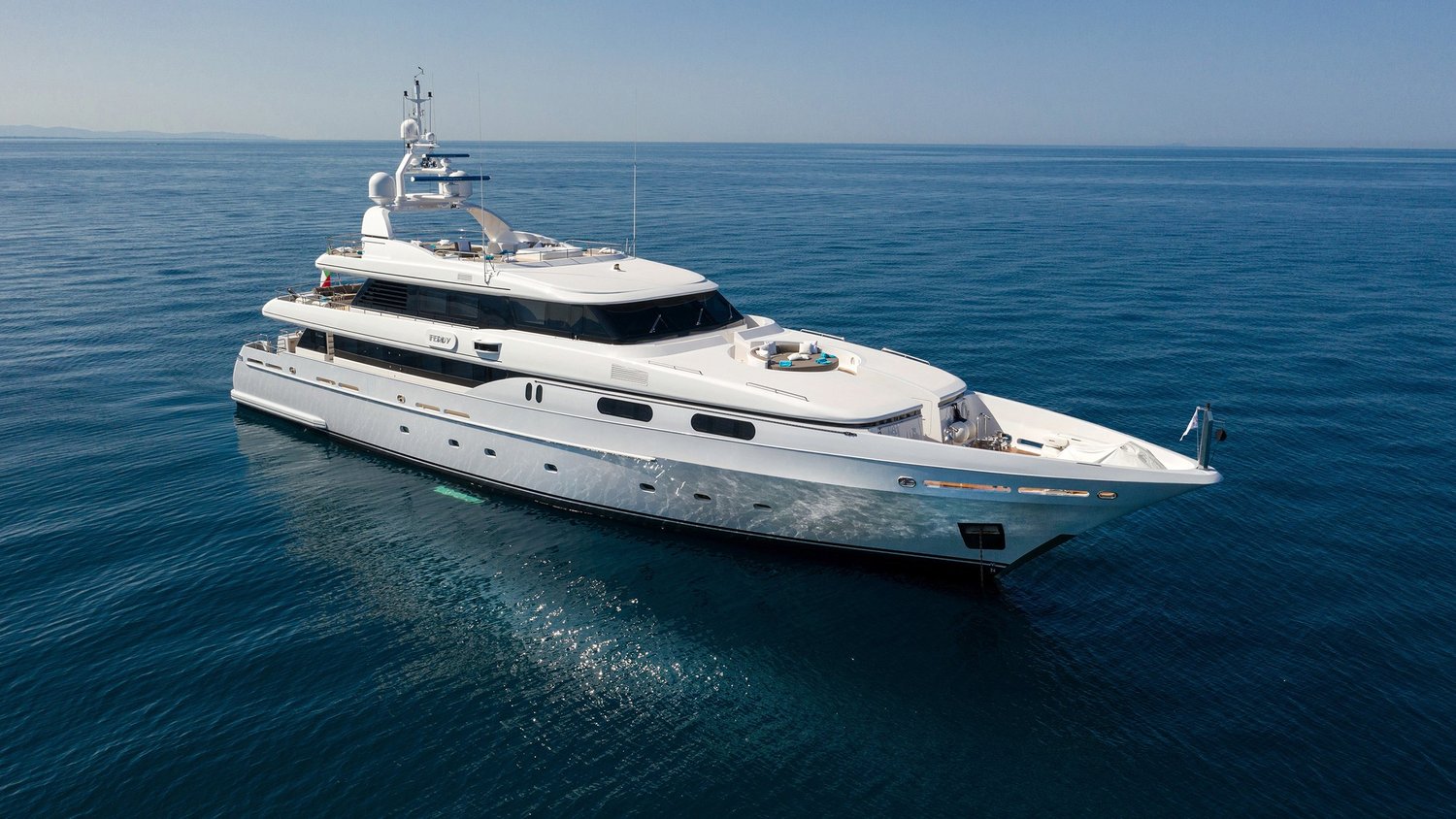

CODECASA 43 - COSTRUZIONE F68 - M.Y. THEOLINA

DATA SHEET

Year2007
Length overall43.00 metres
Maximum beam9.00 metres
Maximum draught2.50 metres
HullHigh-tensile Steel AH 36
SuperstructureAluminium 5083 H111/H 321
ClassificationLloyd’s Register of Shipping ✠ 100 A1 SSC “Yacht” Mono G6 ✠ LMC
Full load displacement380 tonnes approx.
Main engines2 Caterpillar 3512 B (1,950 Hp @ 1,835 rpm)
Generators2 Caterpillar of 86 kw each
1 Caterpillar of 51 kw
Propellers2 Schaffran 5-blade fixed-pitch Class “S”
Maximum speed at light displacement17.00 knots
Range3,000 miles @ 13 knots
Fuel capacity60,000 litres
Fresh water capacity12,000 litres
Guest cabins1 Owner’s Suite
2 Double Cabins
2 Twin Cabins (+ 1 pull-down bed)
1 Single Cabin
Crew cabins1 Captain’s Cabin
1 Chief Engineer’s Cabin
3 Twin Cabins
