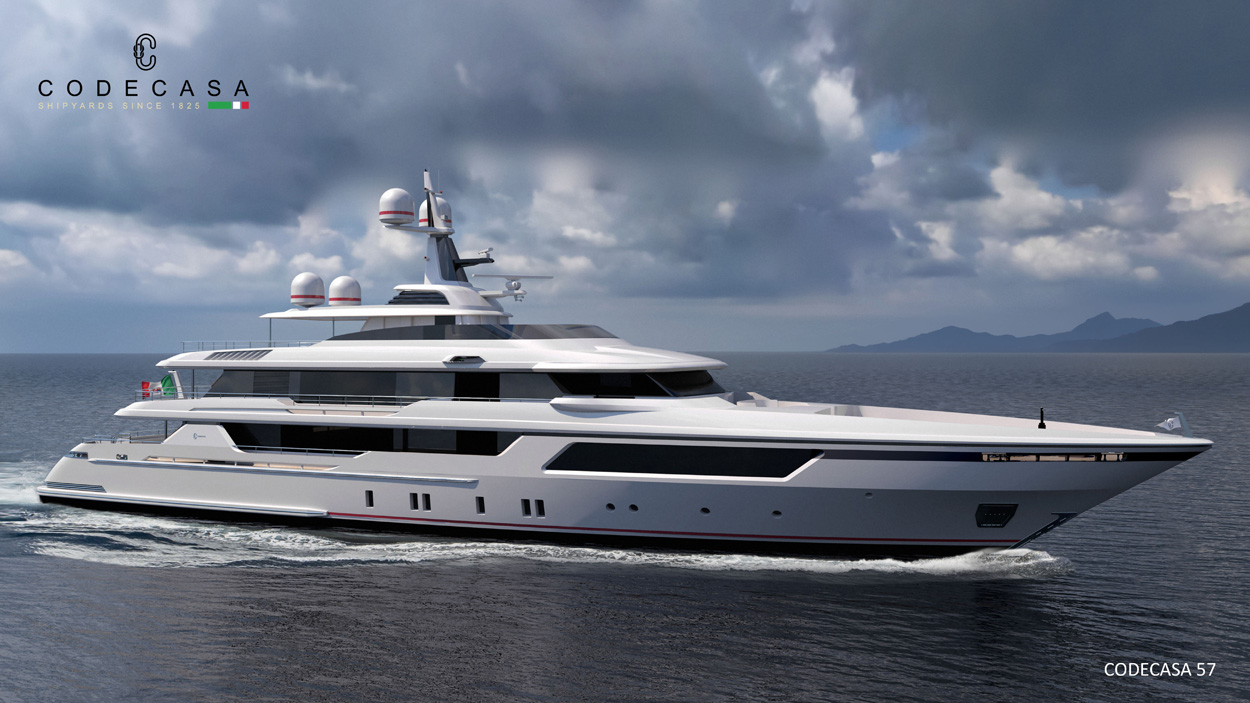

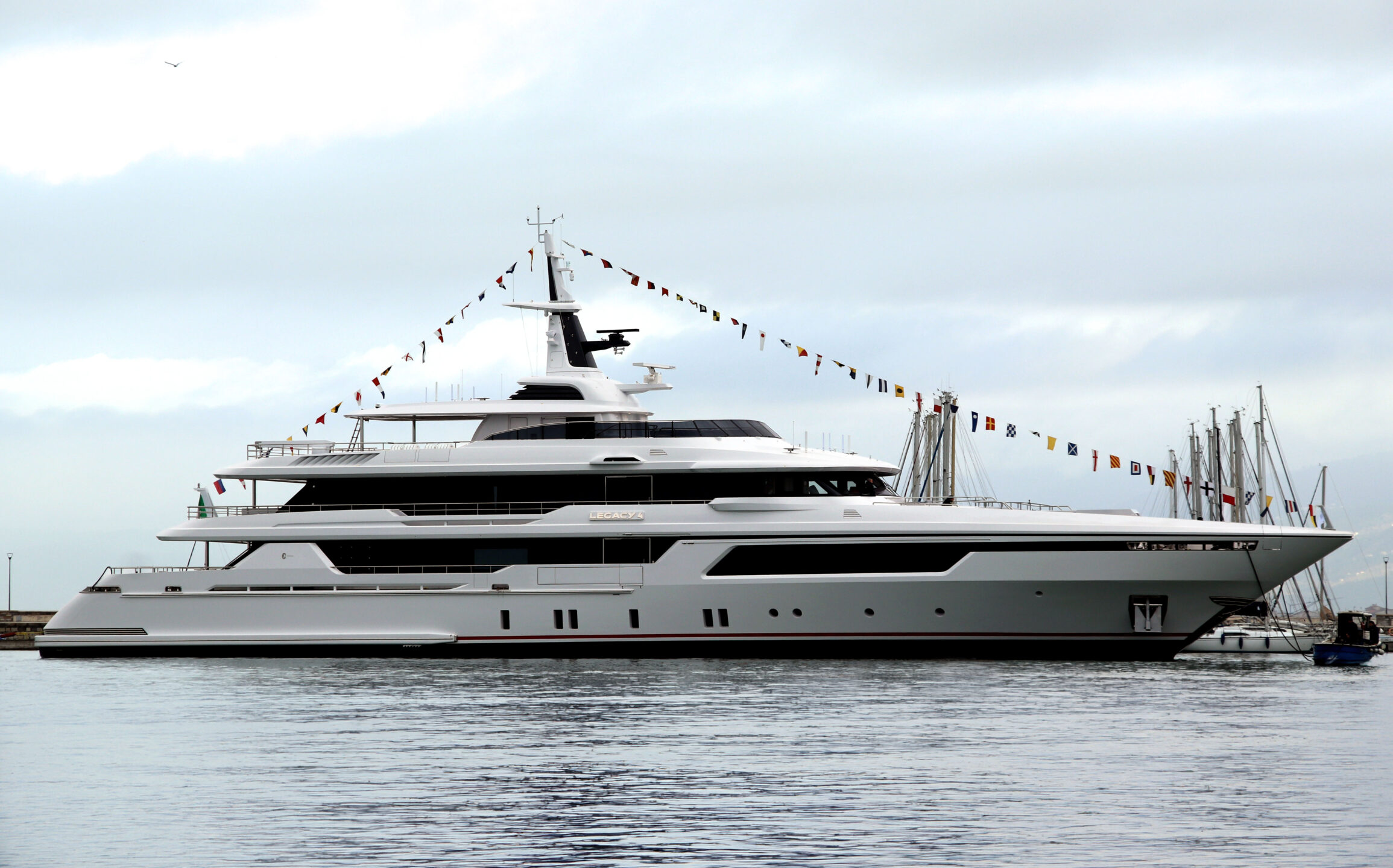

Codecasa 57 – Hull F81
Hull F81 is a Yacht with steel hull and aluminum superstructure, she is powered by 2 Caterpillar 3512E engines (1771 kW/2375 hp @ 1800 rpm); she reaches the maximum speed of 17 knots at light displacement, she has a range of 5,000 miles @ 12 knots. The Yacht is classified by Lloyd’s Register EMEA – Croce di Malta 100 A1, SSC “YACHT” MONO G6 – [Croce di Malta] LMC+UMS – “Red Ensign Group Yacht Code – Part.A” Full Compliance.
The large spaces allow to have privacy, happy moments of conviviality and great comfort on board, an elevator serves all decks and the accomodations include: 1 Owner Suite, 5 Guest Cabins, in addition to the Captain’s Cabin and 6 Double Cabins for the Crew.
Data sheet
| Feature | Value |
|---|---|
| Length Overall | 56,75 meters |
| Maximum Beam | 10,20 meters |
| Maximum Draft | 3,00 meters |
| Hull | High tensile Steel AH36 |
| Superstructure | Aluminium 5083 H111/H321 |
| Classification | Lloyd's Register EMEA - ✠ 100 A1, SSC "YACHT" MONO G6 - ✠ LMC + UMS -"Red Ensign Group Yacht Code - Part. A" Full Compliance |
| Full load displacement | 785 tons approx. |
| Main engines | 2 Caterpillar 3512E (1771 Kw/ 2375 hp @ 1800 rpm) |
| Stabilizers | NAIAD DYNAMICS Mod. 720S - Zero Speed |
| Generators | 2 Caterpillar C7.1 150 Kw each 1 Caterpillar C4.4 "Acert" 86 Kw - Emergency Generator |
| Propellers | 2 Detra 5 fixed blades, "S" Class |
| Maximum speed at light displacement | 17 knots |
| Range | 5,000 miglia @ 12 Knots |
| Fuel oil capacity | 140,000 Liters |
| Fresh water capacity | 25,000 Liters |
| Guests’ cabins | 1 Owner's Suite 5 Guest's Cabins |
| Crew cabins | 1 Captain's Cabin 6 Twin bed Cabins |
| Delivery date | 2026 |
